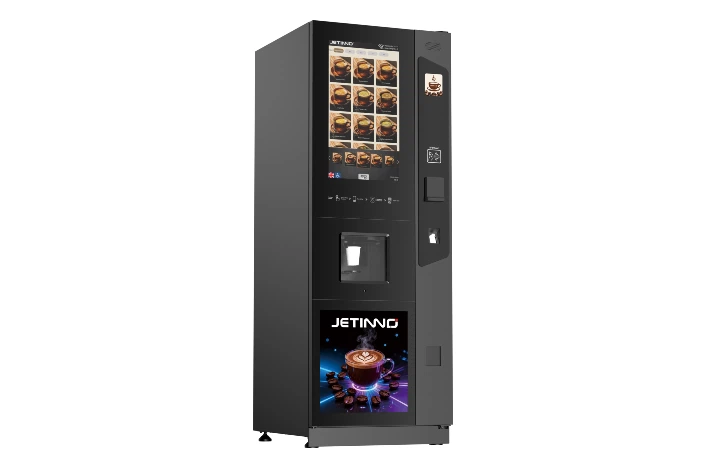

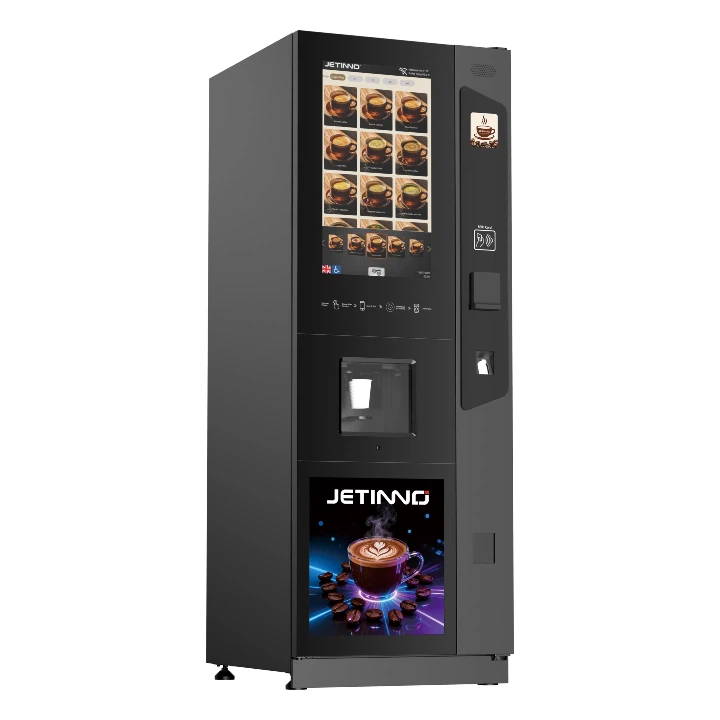

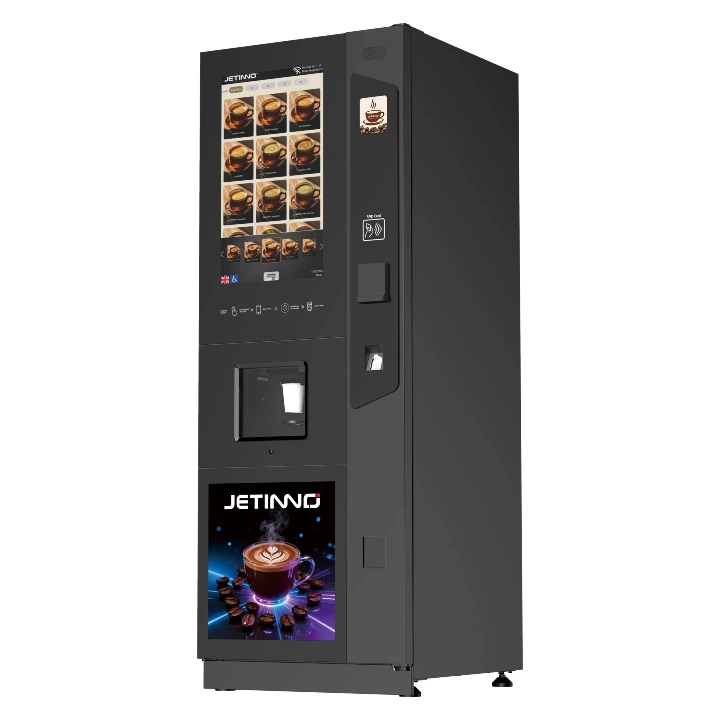

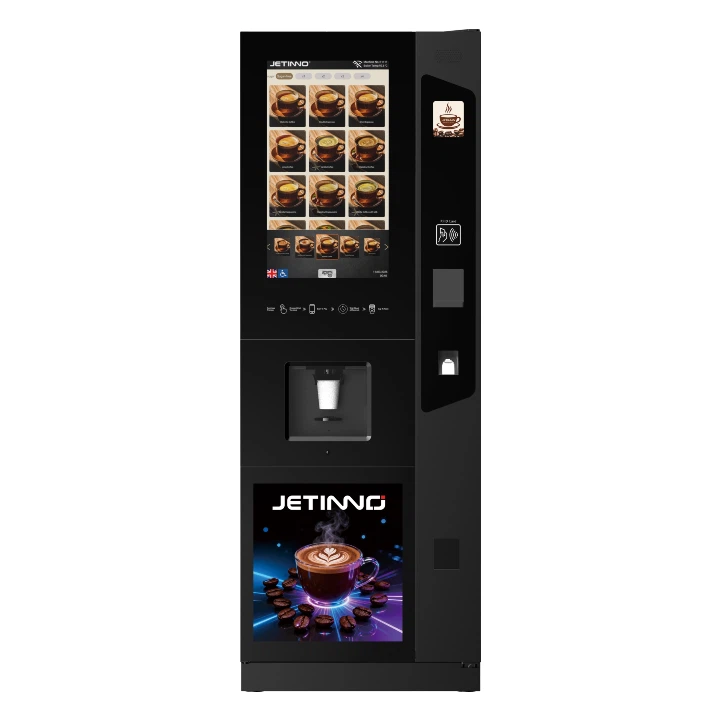

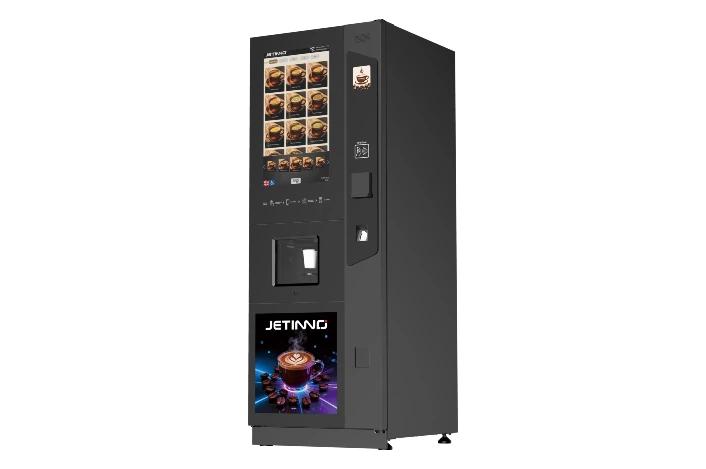

Fresh-Ground Coffee Vending Machine JL320
JL320A/B
Bean-to-Cup Espresso
Direct-to-Cup Sugar
Automatic Stirrer Dispensing
Description
From Bean to Cup, Crafted for Supreme Taste -- JL320 Fresh-Ground Coffee Vending Machine
Mega Capacity & Versatility
Single 4.8kg or dual setup (4.8kg + 2.8kg) of bean hopper and 5–6 instant powder canisters with optional 4.5L and 7L capacity.

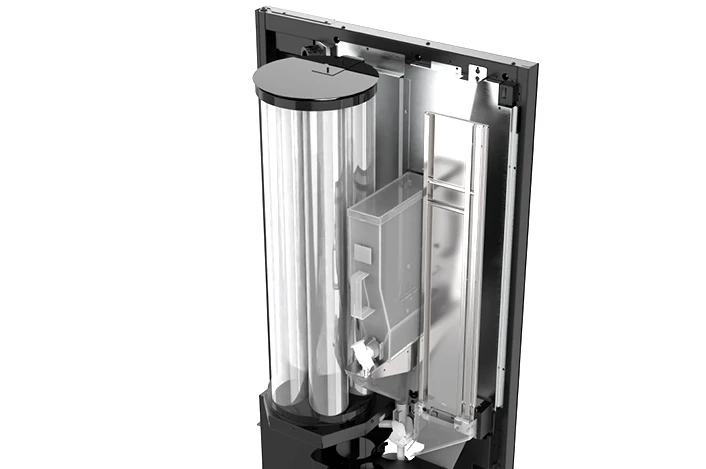

Dry Sugar-to-Cup & Stirrer Dispensing
Direct dry sugar-to-cup and automatic stirring rod dispensing eliminates manual steps while ensuring served-ready consistency.
basic feature
| Model |
JL320A
|
JL320B
|
| image |
 |
 |
| recommended daily output* | 200 cups | |
| operation interface | 27" Vertical Touchscreen | |
| water supply | Tap water(default), barrelled water(optional) | |
| internet connection | Wi-Fi (default), 4G(optional) | |
| optional feature | water Cooler, ioT | |
| customizable item | brand logo, UI logo, Beverage Image, Video Ads, Ports | |
*Based on Protocol DIN18873-2 hourly output
technical data
| Model |
JL320A
|
JL320B
|
| Grinder | JETINNO PGH64*1 | JETINNO PGH64*2 |
| eS Brewer | 14g & 20g (with PTC heater), 22g (without PTC heater) | |
| Bean hopper | 4.8kg*1 |
4.8kg*1+2.8kg*1 |
| Instant Canister | 4.5L*4+7L*2 | 4.5L*4+7L*1 |
| Sugar Canister on door | 4L*1 | |
| Mixer | 4 | 3 |
| Cup size | Default: 6oz,D70mm ,H80mm; other: D80mm can be customized | |
| Cup dispenser capacity | 600pcs (6oz,D70mm ,H80mm) | |
| Stirrer dispenser capacity | 500pcs(90 ~125mm, T1.2mm) | |
| cup delivery door |
Automatic open and close |
|
| cup lid dispenser | Optional External Cup Lid dispenser | |
| Waste Bucket | 600 cakes (8g) | |
| waster water bucket | 20L, with water full detection | |
| power supply | 220-240V,50/60Hz | |
| rated power | 2900W | |
| dimension (W*H*D) | 664mm*1830mm*740mm | |
| net weight |
150kg |
|
