Commercial Coffee and Hot Chocolate Machine -- JL37C

Commercial Coffee and Hot Chocolate Machine -- JL37C

JL37C is commercail coffee and hot chocolate machine.
Commercial Grade Grinder.
Equipped with Jetinno PGH64 grinder made of impact- resistant special steel, featuring 64mm flat burrs for even grinding and offering multiple grinding levels.

Send InquiryChat Now

Guangzhou Jetinno Intelligent Equipment Co., Ltd. is one of the most professional manufacturers and suppliers of Commercial Coffee and Hot Chocolate Machine -- JL37C in China. If you are interested in our Commercial Coffee and Hot Chocolate Machine -- JL37C, welcome to buy the quality machine from our factory. The wholesale service and the customized service are also available.



Products Description

core Components
 Exceptional Quality Derives from Profession

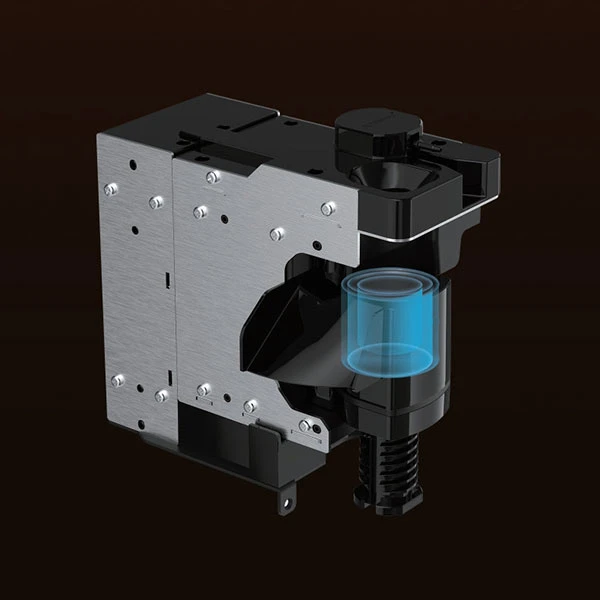

JL38-BRWER

Jetinno Patent
Professional coffee brewing system
 Built with 14g and optional 20g/22g brewing chambers, for different recipes.
Jetinno PTC international patent, European time-honored brand applies the same type.
 Pre-infusion function to have saturated extraction.

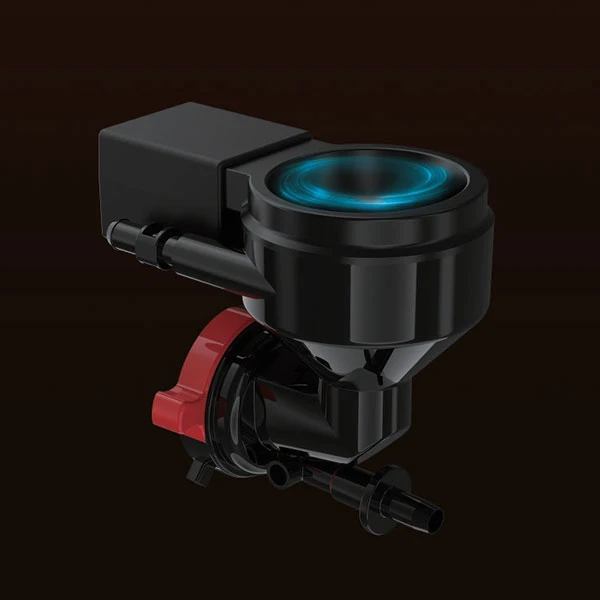

JL37-mixer

Jetinno Patent
High speed stirring system
Detachable stirring chamber, easy for cleaning and maintenance.
Up to 20000rpm stirring speed, rapid sufficient dissolution.
.Adjustable stirring speed
 for different recipes.
( milk foam requires high speed, instant coffee and tea drinks require low speed)

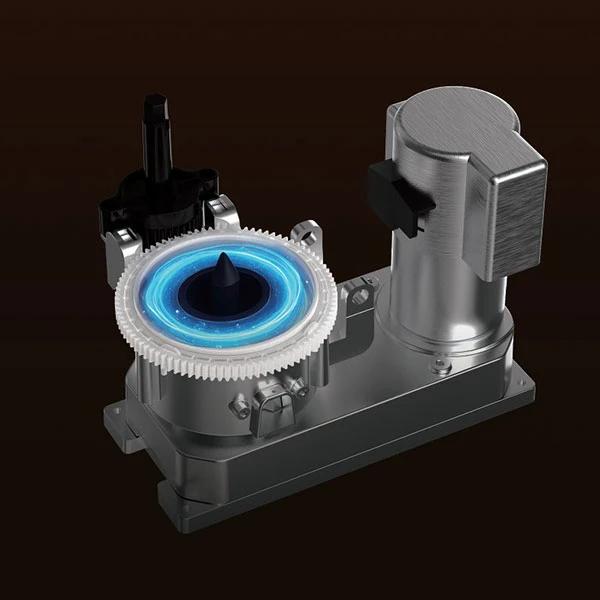

JL38-grinder

Jetinno Patent
64mm Flat burr grinder
Grinder lifetime: 62500 times( can grind approx 500kg coffee bean).
64mm Flat burr grinder, special made steel, high impact tolerance.
Adjustable coffee ground fineness, easy to use.
European well-known grinding blade brand.

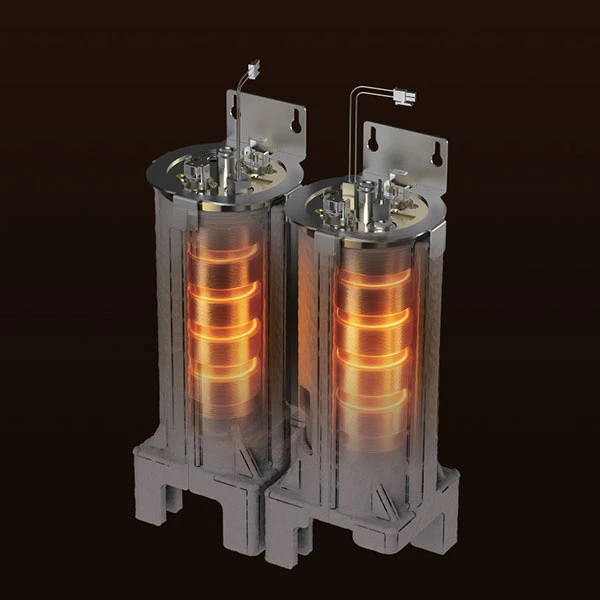

JL38-boiler

Jetinno Patent
Hydraulic System & Boilers
700mL x2 large capacity stainless steel high-pressure boiler,
with a maximum pressure resistance of 20bar.
2700W heating power ensures continuous and stable outlet water temperature.
3000W heating power ensures continuous and stable outlet steam temperature.

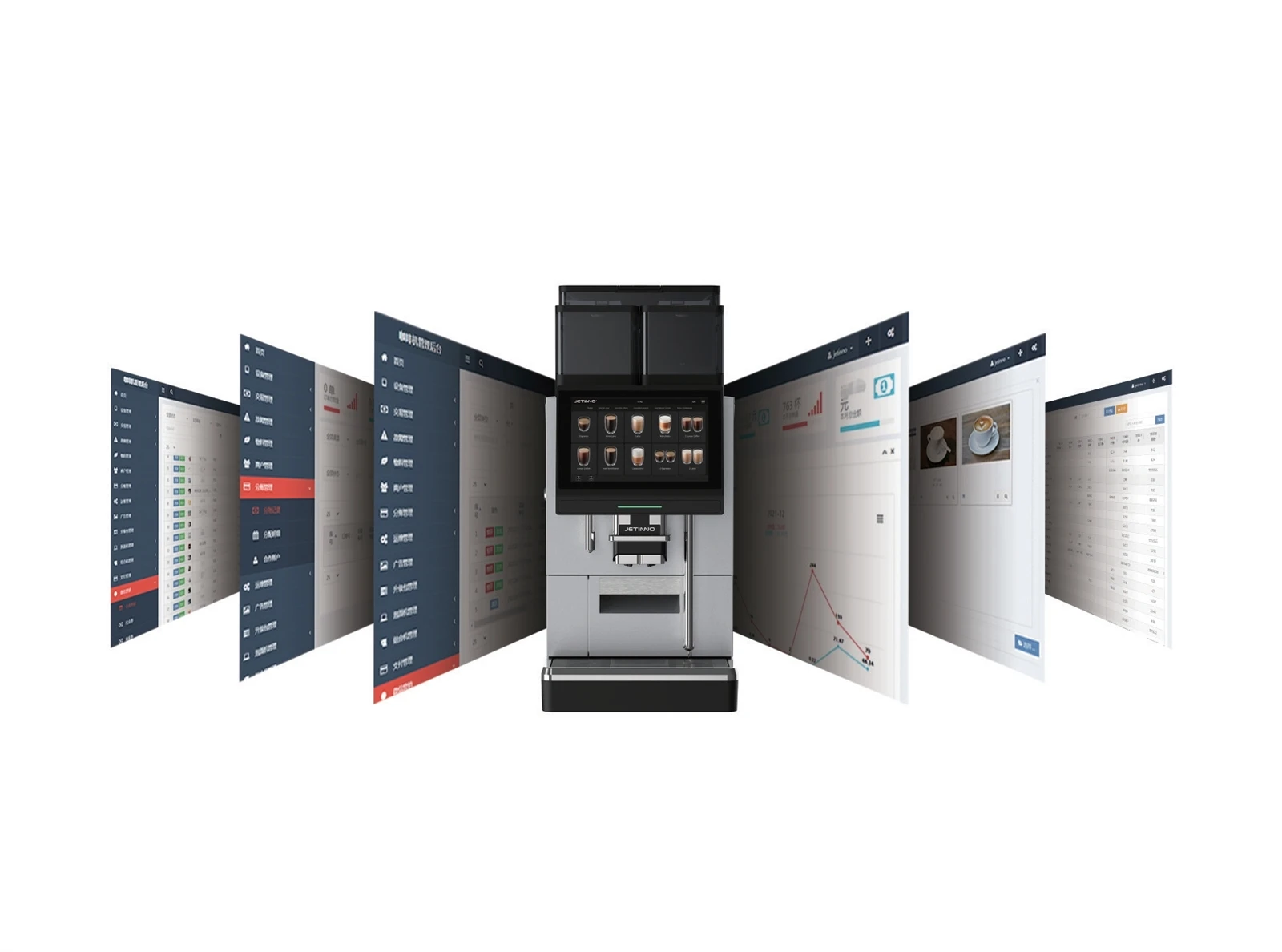

saaS management



SaaS Smart Management

  Cloud-based remote monitoring and control minimize downtime while



  optimizing revenue streams through data driven insights.




图92_第12页_JL37_brochure_en
JL37-无蒸汽棒

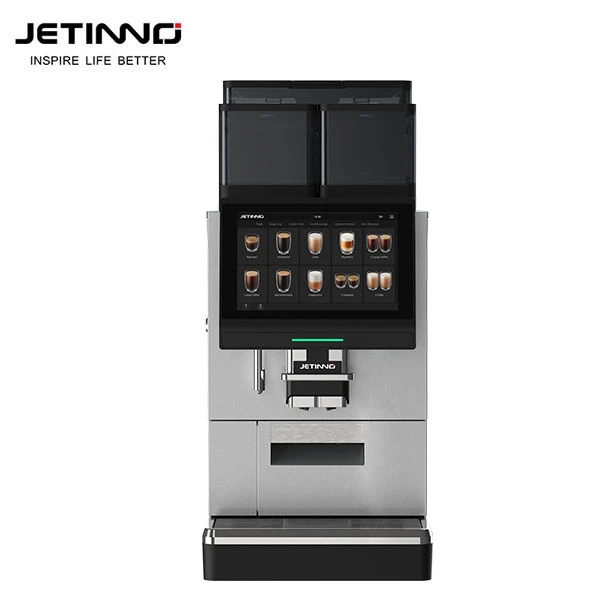

JL37C instant chocolate coffee machine

Golden Extraction Quality

Boiler system with a reheating boiler compensates for heat loss in the pipeline, ensuring optimal temperature stability for perfect coffee extraction.



 Professional Steam Wand

You can choose install Steam Wand -Powerful and stable steam output allows simultaneous coffee extraction and milk steaming, ideal for professional and high-demand scenarios.









Hot Tags: Commercial Coffee and Hot Chocolate Machine -- JL37C, China, manufacturers, wholesale, customized, buy,hot coffee vending machine


basic feature
Model
JL37C
9-JL37C
recommended daily output*200 cups
operation interface10.1" horizontal Touchscreen
water supplyTap water(default), barrelled water(optional)
internet connectionWi-Fi, 4G(optional)
optional featureioT
customizable itembrand logo, UI logo, Beverage Image, Video Ads, Ports, OS

*Based on Protocol DIN18873-2 hourly output




technical data
Model
JL37C
grinderJETINNO PGH64*1
eS Brewer
P22/ P20/ P14 (opt.)
Boiler1
Hot Water PumpGear pump*1
 Instant Canister2L x 2, lockable
bean hopper1800g*2
beverage spout height80-180mm
hot water spout1
steam wandoptional
Waste Basket
70 cakes, opt. direct slagging of
drip tray 1.2L, opt. external drainage
power supply220-240V,50/60Hz
rated power3000W
dimension (W*H*D)
312(W)*695(H)*608(D)mm
net weight34kg
